Fractured Fins

Concrete Textures and Form Liner Patterns

Whether you want to create a geometric patterned concrete wall, a custom rock texture, or design an art motif that will be an architectural showpiece, or anything in between, we’ll create the concrete form liner for the job.

Each concrete form liner is designed for your application with consideration for ease of use, flexibility, and scale. Patterns can be made to match side by side, top to bottom, staggered/offset, and even rotating 180 degrees.

Browse our extensive library below.

1101

Standard Spec Rib

0.75" depth
1.5" C-C
0.5" peak
0.5" valley
1102

Corea Flute

1.75" depth
3" C-C
1" peak
1" valley
1103

Stanton Rib

1" depth
2" C-C
1" peak
0.25" valley
1104

Denver Rib

1.5" depth
3.375" C-C
2" peak
0.75" valley
1105

Las Vegas Rib

1" depth
2" C-C
0.5" peak
0.5" valley
1106

Dover Rib

1" depth
2.5" C-C
0.875" peak
0.875" valley
1106A

Dover Flute

1.25" depth
2.5" C-C
0.75" peak
1" valley
1106B

1106B Dover Flute

1" depth
2.5" C-C
1" peak
1" valley
1106Wavy

Wavy Dover Flute

1" depth
2.5" C-C
1" peak
1" valley
1107

Mission Flute

1.5" depth
2" C-C
0.75" peak
0.75" valley
1107Custom

1107 Custom

1.5" depth
2" C-C
1108

Washington Rib

1.25" depth
2" C-C
1" peak
0.5" valley
1109

Abiline Rope

1.625" depth
4" C-C
2" peak
2" valley
1110

Bush Rib

1.5" depth
3" C-C
1" peak
1" valley
1111

Harbor Rib

1.5" depth
6" C-C
2" peak
3" valley
1112

JLD Flute

0.625" depth
1" C-C
0.5" peak
0.25" valley
1114

1/2" Fractured Rope

0.5" depth
2" C-C
1" peak
1" valley
1115

Yumpa Rib

0.75" depth
8" C-C
7" peak
1" valley
1116

Jackson Rib

0.375" depth
1.25" C-C
0.4375" peak
0.4375" valley
1117

Split Face Rib

1" depth
4" C-C
3" peak
0.75" valley
1118

Ripped Rope Rib

0.75" depth
3" C-C
1121

Rebar #6

1.25" depth
5.5" C-C
0.75" valley
1123

Vedder Flute

1.375" depth
2" C-C
0.75" peak
0.5" valley
1124

Zaha Rib

1.5" depth
1" peak
3.5" C-C
1.5" valley
1124A

1124A Zaha Rib

1.5" depth
3.5" C-C
1" peak
1.5" valley
1124B

1124B Zaha Rib

1.5" depth
3.5" C-C
1" peak
1.5" valley
1125

Galloway Rib

1.25" depth
2" C-C
0.75" peak
0.75" valley
1127

Extreme Fractured Rib

1.5" depth
2" C-C
0.75" peak
0.75" valley
1128

Utah Rib

0.625" depth
~1.4375 C-C
0.50" peaks
0.50" valleys
1130

Conor Rib

0.75" depth
1.5" C-C
0.75" peak
0.25" valley
1131

Boise Rib

1" depth
4" C-C
3" peak
0.75" valley
1132

Atlantic Rib

1.25" depth
4" C-C
1.875" peak
1.875" valley
1133

Pontiac Rib

1" depth
3.5" C-C
1.5" peak
1.5" valley
1140

Rio Hondo Rib

1.25" depth
3" C-C
1.625" peak
0.75" valley
1142

Long Island Rib

0.5625" depth
1.5625" C-C
0.5625" peak
0.5625" valley
1143

Florida Flute Modified

1" depth
4" C-C
1.5" peak
2" valley
1146

Cimarron Rib

0.625" depth
3" C-C
2" peak
0.75" valley
1147

Napa Rib

1" depth
1.5" C-C
0.5" peak
0.5" valley
1149

Park Rib

1" depth
2.5" C-C
1.25" peak
1" valley
1153

Phoenix Rib

1.125" depth
Random C-C
1154

Walters Flute

0.375" depth
1.50" C-C
0.75" squared peaks
0.75" valleys
1155

T-Rex Rib

1.50" depth
9.625" C-C
7" peaks
2.625" valleys
1161

Honor Rib

1" depth
2" C-C
1.125" peak
0.5" valley
1168

Duke Rib

1/4” (6mm) max. depth
2/3" (17mm) C-C
1171

Colorado Drag

1.5" depth
1.5" - 5"random flute width
1.5" valley
.25" draft
1172

Fox Rib

~1/2” (13mm) max. depth
~4" (100mm) C-C
~3-1/8" (80mm) rib width
~47.25" x 10' (1.2m x 3.05m)
1173

Temecula Rib

1” (25mm) max. depth
1-1/2" (38mm) C-C
5127

1" Extreme Fractured Rib

0.5"-1" (25mm) extremely fractured fin
2" (51mm) pattern repeat

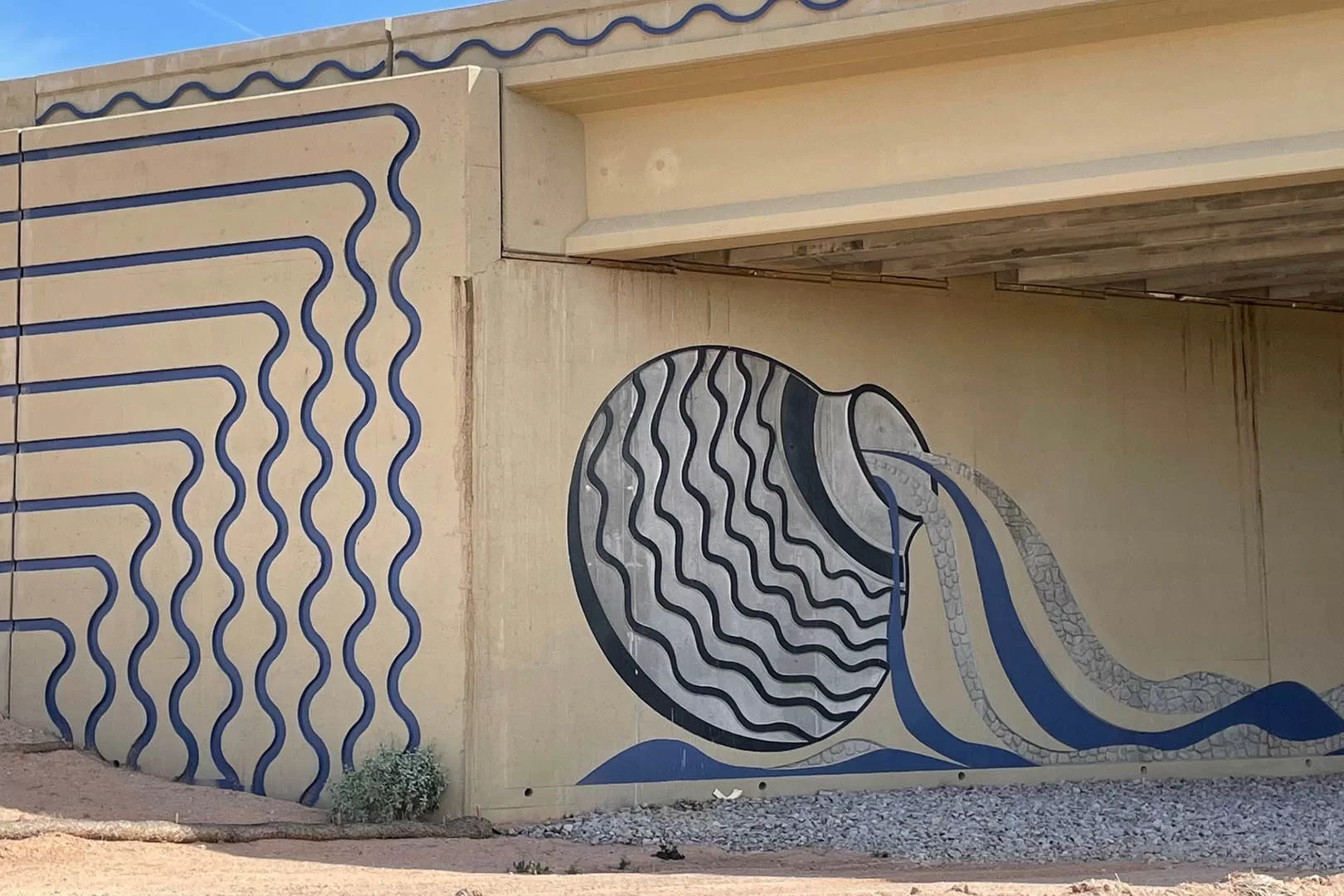

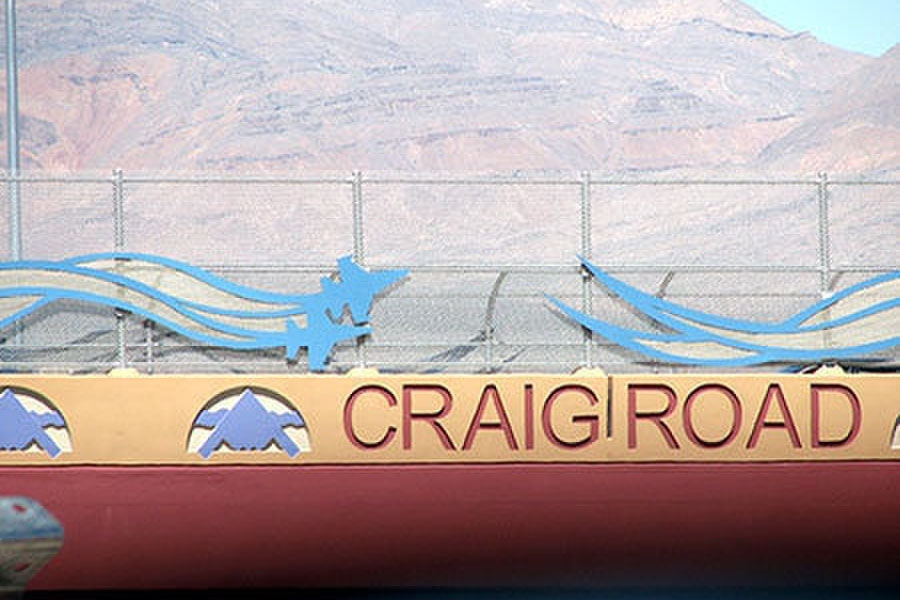

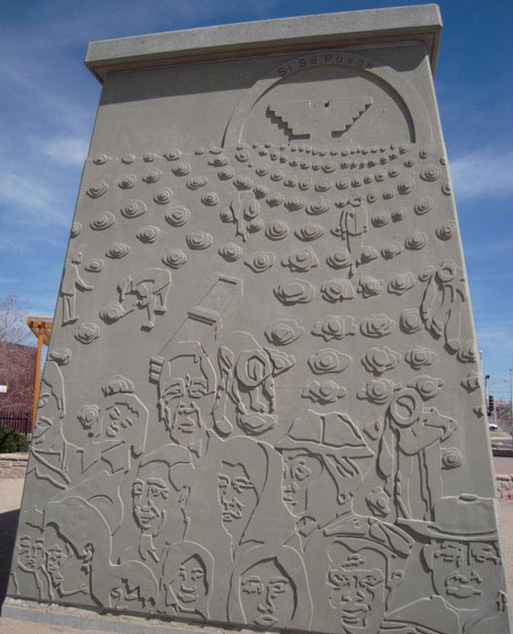

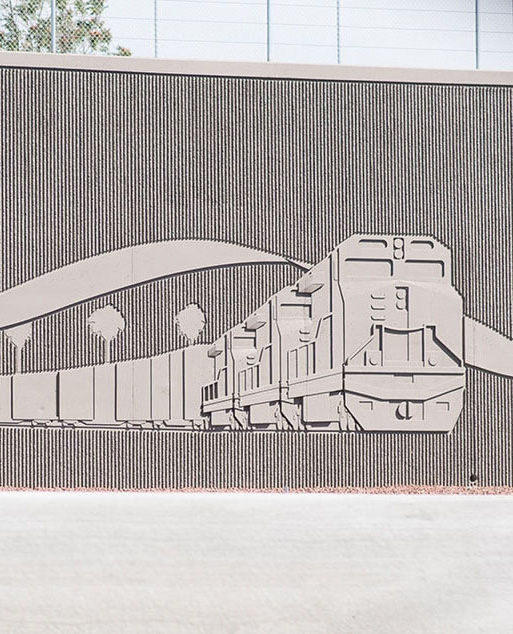

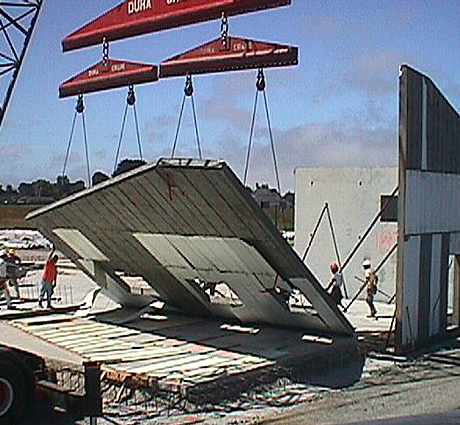

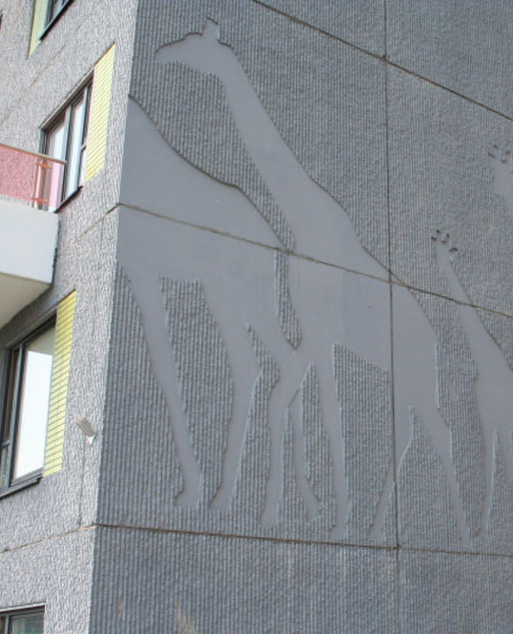

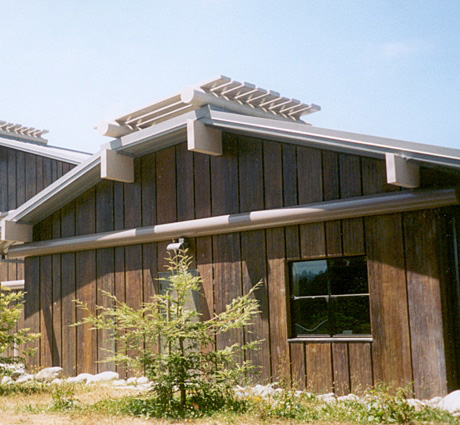

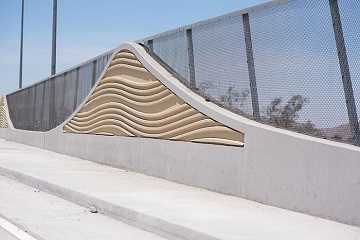

Project Spotlight
